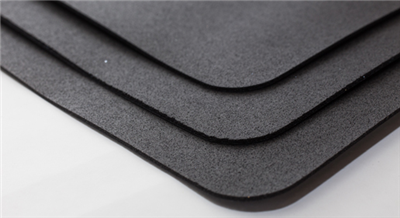

STK Poron® 4790-92 | Ultra-Soft, Slow-Rebound PU Foam For Gentle Sealing And Cushioning
STK Poron® 4790-92 is a premium extra-soft polyurethane foam characterized by its exceptionally slow rebound properties and minimal closure force requirements. This engineered material combines

First 12 Last

Foam Tapes & Custom Die-Cutting Services | STK

How to Choose the Suitable Foam Tape

Select the Right Foam Tape & Backing System Intro: Using an over-specified foam tape increases unit cost, while under-specifying leads to bond failure or residual. Choose the right acrylic foam, polyurethane, PE, or EVA foam tape by evaluating key parameters such as density, compression set, and thickness.

3M Material & Adhesive Family Matrix

Product Series	Foam Base Material	Adhesive Type	Thickness Range	Key Highlights
Acrylic Foam Tape (VHB)	High-Density Acrylic	High-Performance Acrylic	0.4mm – 2.0mm	Viscoelastic core, high shear strength, weather-resistant
Polyurethane (PORON) Pads	Microcellular PU	Acrylic Transfer Adhesive	0.5mm – 5.0mm	Low compression set, superior shock absorption
Cross-Linked PE Foam	Closed-Cell PE Foam	Rubber / Acrylic	0.5mm – 3.0mm	100% closed-cell, waterproof, excellent conformability
Double-Sided EVA Sponge	EVA Sponge	Hot-Melt / Solvent Acrylic	1.0mm – 5.0mm	High resilience, economical cushioning, lightweight

Still not sure which Foam tape fits your application? Send us your substrate, temperature range, and load requirements — our engineers will recommend the right tape and a competitive quote within 24 hours.

Talk to an Engineer

Required Data Before You Order

Confirm these items with your process engineer before requesting a quote. This is also the information our technical team uses to recommend the right foam tape:

Compression and recovery — the required foam thickness, compression percentage, and cushioning resilience under load.

Substrate & gap size — the surfaces the tape is applied to (e.g., plastic, metal, glass) and the width/depth of the gap to be filled or sealed.

Environmental resistance — exposure requirements to moisture, UV rays, dust, waterproofing, or chemicals.

Adhesion requirement — permanent structural bonding, pressure-sensitive adhesion, or repositionable mounting.

Die-cutting and converting — whether you require custom die-cut pads, kiss-cut parts with pull-tabs, rolls, or sheets based on your CAD drawings

Factory Capability Snapshot

Why Source Foam Tape From STK

A real manufacturing partner behind every roll — not a reseller.

20+ Years of 3M Tape Converting Experience

common-materials-we-convert-right-column

±0.1mm
Slitting Tolerance

die-cut-3m-300lse-double-sided-adhesive-tapes

24 Hours
Quote & Feasibility Response

ISO 9001 / ISO 14001
Certified Manufacturing

Our factory & quipment

coating machine

laminating machine

rewinding machine

slitting

Tape-Die-cutting

Industry Applications

With exceptional gap-filling, cushioning, and sealing properties, STK foam tapes and custom die-cut pads are widely utilized across demanding industries worldwide:

Foam Tape EV Battery

01.

EV Battery Pack Sealing & Cushioning

Application Scope: Utilized for new energy vehicle (NEV) battery pack gasketing, thermal insulation padding, module-to-module isolation, and cell-to-cell cushioning.

Engineering Value: Engineered to constantly absorb multi-directional expansion and contraction forces during charge-discharge cycles, prevent mechanical vibration fatigue, completely block moisture and dust ingress, and ensure long-term electrical and operational safety under extreme road environments.

Featured Series: Polyurethane (PORON) Foam Pads | Cross-Linked PE Foam

02.

Electronics Housing Assemble

Application Scope: Ideal for consumer electronics, smartphones, tablets, wearable devices, and smart home appliances.

Engineering Value:E Provides reliable shock absorption against drop impacts, ultra-reliable dust-proofing, and precision narrow bezel mounting for touch screens, camera lenses, and internal micro-components without adding unwanted thickness or causing light leakage.

Featured Series: Acrylic Foam Tape (VHB) | Microcellular PU Pads

Foam Tape PCB

Foam Tape HVAC

03.

HVAC & Industrial Equipment

Application Scope: Applied extensively in commercial ventilation ducts, air conditioning units, cleanroom partitions, and heavy industrial machinery enclosures.

Engineering Value: Delivers airtight and watertight sealing to minimize thermal energy loss, provides high-performance acoustic insulation, and ensures effective vibration damping to neutralize heavy mechanical noise and operational resonance under harsh environmental conditions.

Featured Series: Cross-Linked PE Foam | Double-Sided EVA Sponge

04.

Automotive Interior Trim & Anti-Rattle

Application Scope: Used for dashboard mounting, pillar trim fixing, rearview mirror assembly, console bonding, and wire harness anti-rattle cushioning.

Engineering Value: Flexibly conforms to irregular or textured plastic surfaces, absorbs high-frequency cabin vibrations, eliminates annoying squeaks and rattles during rough driving conditions, and significantly enhances overall acoustic comfort and passenger experience.

Featured Series: Acrylic Foam Tape (VHB) | Double-Sided EVA Sponge

Foam Tape Automotive Interior

Case Study Snippets

EV Battery Pack Sealing (New Energy Vehicle)

An electric vehicle (EV) battery pack manufacturer experienced insulation failure and edge curling when using standard adhesive tapes inside battery modules subjected to continuous thermal cycling.

STK Solution: STK reviewed the customer’s application requirements, including operating temperature, voltage specifications, electrolyte exposure, and space limitations. Based on these parameters, STK recommended a custom-slit Polyimide Film Tape combined with a high-performance silicone adhesive designed for extended thermal stability.
Testing & Results: The customer conducted thermal aging and dielectric tests under actual operating conditions. The optimized polyimide tape maintained strong anchoring and insulation integrity without softening or leaving residue.
Application: EV battery pack / cell module insulation
Challenge: Insulation breakdown and edge lifting during thermal cycling
Recommended Solution: STK Polyimide Tape (Silicone adhesive), custom slit width
Key Benefit: Long-term thermal stability, reliable dielectric strength, and enhanced pack safety

Smartphone Narrow Bezel Assembly (Consumer Electronics)

A leading consumer electronics brand needed an ultra-thin, high-adhesion foam tape for dust-proof and shock-resistant display bezel mounting in next-generation smartphones, without increasing device thickness or causing light leakage.

STK Solution: Provided customized 0.2mm black acrylic foam tape with high shear strength, weather resistance, and precise die-cut tolerances tailored to their CAD layout.
Proven Results: Streamlined automated high-speed production, successfully eliminated bezel gaps, and prevented dust accumulation while maintaining a sleek, ultra-thin aesthetic.

Common Failure Modes And Prevention

Failure of foam tapes and pads in application is rarely due to adhesive quality alone—it typically stems from exceeding compression limits, improper recovery behavior, or mismatched substrate preparation under environmental stress.

Foam Compression Set & Permanent Deformation Under Load

Typical Causes: Exceeding the maximum recommended compression percentage; prolonged static loading without adequate recovery resilience; or selecting low-density foam for high-load structural gasketing.

Prevention: Match the foam's recovery profile to your application load; select microcellular polyurethane (PORON) or high-density acrylic foam engineered for low compression set and long-term dimensional stability.

Relevant Standard: ASTM D3574 (Standard Test Methods for Flexible Cellular Materials—Slab, Bonded, and Molded Urethane Foams).

Adhesive Edge Lifting & Shear Failure After Environmental Exposure

Typical Causes: Exceeding peak temperature rating or dwell time limit; improper peel angle during removal; removal while substrate is still elevated in temperature.

Prevention: Confirm exact reflow/curing temperature profile; select silicone or specialized cross-linked acrylic adhesive constructions engineered for clean removal.

Relevant Standards: ASTM D1000-26 for tape performance and high-temperature aging; ASTM D3330/D3330M-04(2025) for peel adhesion.

Die-Cut Part Distortion Or Burred Foam Edges

Typical Causes: Unsuitable release liner selection for soft foam converting; dull die-cutting tooling; or improper tension control during slitting and rewinding of compressible materials.

Prevention: Use precision rotary or flatbed die-cutting tooling with exact clearance; select dimensionally stable heavy-duty release liners and specialized blades designed for clean foam cutting.

Relevant Standard: Internal dimensional and thickness tolerance verification methods.

Experiencing bonding issues on your line? Send photos, substrate details, and heating profiles. STK’s technical engineers will review failure modes and provide alternative recommendations.

Request Failure Analysis

Custom Converting And Manufacturing Capability

Custom Slitting, Rewinding and Die-Cutting

A foam tape or pad only performs in production if it arrives in the right format. We support converting steps that let you load the material directly onto your line or process with maximum efficiency.

Converting Options Matrix

Capability	What it means for your process
Slitting	Custom foam roll widths from 3mm to 1200mm, with precision thickness and width tolerances of ±0.1mm.
Rewinding	Log rolls, spooled rolls, or bespoke length rolls tailored to match your automatic dispensing and application equipment.
Die-cutting	Flatbed or rotary die-cut parts produced precisely to your CAD drawing, including custom shapes, kiss-cut pads, pull-tabs for easy peeling, and die-cut dots.
Laminating / converting	Combining foam backings with specialized release liners or double-sided transfer adhesives for multi-layer bonding applications.
Custom branding / packaging	Custom core printing, private-label box packaging, and barcode labeling designed for global distribution and inventory management.

Step-by-Step Custom Converting Process

Confirm Application and Temperature Profile

Share your operational environment, including operating temperatures, dwell time, and the specific substrate surface. This ensures our engineering team captures all thermal and mechanical constraints right from the start.

Recommend Backing and Adhesive Construction

Based on your parameters, we evaluate and propose the ideal material construction—selecting among acrylic VHB, microcellular PORON, PE, or EVA foam bases. This matches your application precisely without over-specifying or risking performance failure.

Produce Sample or Trial Roll

We prepare trial rolls so your team can validate the foam material and cushioning performance directly on your production line. Free standard samples are available, with a typical sample lead time of 3–5 working days.

Test Adhesion, Thickness, Compression and Environmental Performance

We conduct rigorous testing to verify peel adhesion, thickness tolerance, compression set, and sealing performance. All results are benchmarked strictly against your agreed specifications.

Slit, Rewind or Die-Cut to Your Drawing

Once approved, we utilize precision rotary and flatbed converting equipment to slit custom widths, rewind rolls, or cut complex shapes and kiss-cut pads with pull-tabs. Everything is executed strictly according to your CAD drawings.

Upload Your Drawing

Send your CAD/PDF drawing, required 3M part number, roll width, and quantity. STK will confirm feasibility, tolerances, and pricing within 24 hours.

Quality Control Steps

Incoming material inspection — Foam base material purity, density uniformity, thickness tolerance, and adhesive batch verification.
Coating thickness and coating weight control — Online beta-gauge scanning and micrometer cross-web profiling for consistent adhesive coating.
Peel and shear adhesion testing — 180° peel strength and holding power testing using standard substrates (ASTM D3330 / ASTM D3654).
Compression and recovery verification — Deflection and resilience testing under rated operating loads and continuous temperatures.
Residue and aging check — Clean-peel and environmental durability verification following thermal and moisture exposure.
Final inspection before shipment — Dimensional audit, die-cut precision check, packaging security, and lot traceability verification.

Manufacturing Facilities:

STK operates advanced coating, precision slitting, and rotary die-cutting lines in our manufacturing center. STK supplies both factory-produced adhesive foam tapes and selected branded tape solutions. Product origin, brand status and customization scope are identified on each product page.

Product Cards (Category Listing Layout)

STK Foam Tapes & Pads: Product Specification & Application Matrix

Product Series	Foam Base Material	Adhesive Type	Thickness Range	Temperature Range	Key Industrial Applications
Acrylic Foam Tape (VHB)	High-Density Acrylic Foam	High-Performance Acrylic	0.4mm – 2.0mm	-40°C to +120°C (Short-term up to 160°C)	Structural bonding, metal replacement, architectural glazing, automotive exterior trim
Polyurethane (PORON) Foam Pads	Microcellular PU Foam	Acrylic Transfer Adhesive	0.5mm – 5.0mm	-40°C to +90°C (Short-term up to 120°C)	EV battery cell cushioning, electronics bezel gasketing, low compression set dampening
Cross-Linked PE Foam Tape	Closed-Cell PE Foam	Rubber / Modified Acrylic	0.5mm – 3.0mm	-30°C to +80°C	HVAC duct sealing, window and door gaskets, automotive interior anti-rattle mounting
Double-Sided EVA Sponge Tape	EVA Sponge	Hot-Melt / Solvent Acrylic	1.0mm – 5.0mm	-20°C to +70°C	Lightweight cushioning, packaging protection, display stands, general-purpose gap filling

Packaging and Shipping

Packaging

Inner packaging is plastic bags, outer packaging is cartons, and can also be packaged according to customer requirements.

Shipping

Sea or air freight according to your requirements.

FAQ

Q: How do I choose between acrylic foam, PORON, PE, and EVA foam tapes?

A: Selection depends on your application: Acrylic foam is ideal for structural bonding and weather resistance; PORON is best for electronics gasketing and low compression set; PE foam is waterproof and used for general mounting; EVA is cost-effective for packaging and cushioning.

Q: What is the difference between open-cell and closed-cell foam constructions?

A: Closed-cell foams (like PE and some EPDM) block air, moisture, and water, making them perfect for sealing. Open-cell foams offer greater flexibility and breathability, often used for cushioning and sound dampening.

Q: Can you customize foam tapes into specific shapes using die-cutting?

A: Yes. We offer high-precision die-cutting services to produce custom shapes, gaskets, and pads according to your CAD drawings or physical samples.

Q: What information is required to get a custom quote or sample?

A: Please provide your required foam material, thickness, width, length, application details, and estimated annual quantity. Uploading a drawing or photo is also encouraged.

Selection: Not sure which tape to specify? Send your process temperature, dwell time, substrate and removal requirement — our technical team will recommend a construction.

Converting: Upload Your Drawing — Send your die-cut drawing, roll width and application details. We will confirm feasibility, tolerance and lead time.

Documentation: Request TDS and SDS — Tell us the product and destination country and we will confirm the applicable documents.

Get a Quote & Request a Sample
