High Performance Attachment Tape (Direct Alternative for 3M™ 4229P / 5604 / 5608 / 5611 / EX4008 / PT1100) | Dark Grey Automotive Acrylic Foam Tape - STK Tape
STK Tape's Automotive Acrylic Foam Tape series is an OEM-grade structural joining solution engineered by STK Tape as a direct, high-performance alternative to 3M 4229P, 5604, 5608, 5611, EX4008, and PT1100. Manufactured with a viscoelastic dark grey acrylic foam core coated on both sides with high-tack automotive-grade acrylic adhesive, this High Performance Attachment Tape delivers permanent bond strength directly onto clear coats, painted automotive metals, and rigid plastic trims.
In automotive manufacturing and aftermarket body customization, securing exterior trims, emblems, spoilers, and body side moldings requires an attachment tape that withstands harsh weather, high-speed wind drag, and severe vehicle vibrations without popping loose or damaging paint. STK's alternative to 3M automotive acrylic foam tapes replaces traditional mechanical clips and liquid adhesives. Its viscoelastic core absorbs dynamic road shocks, compensates for stress differences caused by thermal expansion, and provides a 100% watertight seal.
equest High Performance Attachment Tape Testing Roll & Sample Kit
Practical Engineering Benefits
High Initial & Permanent Adhesion to Automotive Paints
Formulated specifically to bond tightly to modern automotive clear coats, painted steel, and challenging exterior plastics (ABS, PC, and PVC trim components) without needing aggressive surface primers.
Viscoelastic Shock Absorption & Stress Relaxation
The viscoelastic foam core distributes mechanical forces evenly across the entire seam. It relaxes stress under thermal cycling when plastic trims expand at different rates than the metal car body.
Full Gauge Thickness Options (0.4mm to 1.1mm)
Covers every automotive clearance requirement: 0.4mm for flush emblems, 0.76mm/0.8mm for standard body side moldings, and 1.1mm for heavy-duty spoilers and rigid body claddings.
100% Weatherproof, UV & Wash-Resistant Seal
The closed-cell acrylic structure prevents water ingress, road salt corrosion, and UV breakdown. It withstands automated high-pressure car washes and continuous outdoor exposure for years.
TDS
|
Technical Dimension |
STK Equivalent Model |
3M™ Reference Model |
Standard Profile Specs |
|
STK 0.4 mm Thin Gauge |
STK-AF 5604-ALT |
3M™ 5604 |
0.4 mm (16 mil) Dark Grey |
|
STK 0.76 mm OEM Standard |
STK-AF 4229P-ALT |
3M™ 4229P |
0.76 mm (30 mil) Dark Grey |
|
STK 0.8 mm Medium Gauge |
STK-AF 5608 / EX4008-ALT |
3M™ 5608 / EX4008 |
0.8 mm (32 mil) Dark Grey |
|
STK 1.1 mm Heavy Gauge |
STK-AF 5611 / PT1100-ALT |
3M™ 5611 / PT1100 |
1.1 mm (45 mil) Dark Grey |
|
Functional Role |
High Performance Attachment Tape |
High Performance Attachment Tape |
Structural attachment for exterior automotive components |
|
Operating Temperature Range |
-40°C to 120°C (-40°F to 248°F) |
-40°C to 120°C (-40°F to 248°F) |
Survives freezing winters and scorching engine/sunlight heat spikes |
|
Short-Term Peak Heat |
150°C (302°F) |
150°C (302°F) |
Resists short-term high-temperature paint-curing bake cycles |
Common Automotive & Industrial Applications
Automotive Body Side Moldings & Cladding: Permanent mounting of protective body side strips, lower door claddings, and wheel arch flares onto painted car panels.
Emblems, Badges & Nameplates: Precision die-cut bonding of vehicle logos, chrome trim letters, and model badges with flush, weather-tight adhesion.
Roof Drip & Pillar Trim Attachment: Securing roof drip channel moldings, door pillar covers, and decorative window frame trims across passenger cars and commercial vehicles.
Spoilers & Exterior Aerodynamic Parts: Mounting lightweight rear spoilers, front lip diffusers, and side skirts without drilling holes into the car bodywork.
STK Custom Conversion & Direct Factory Supply

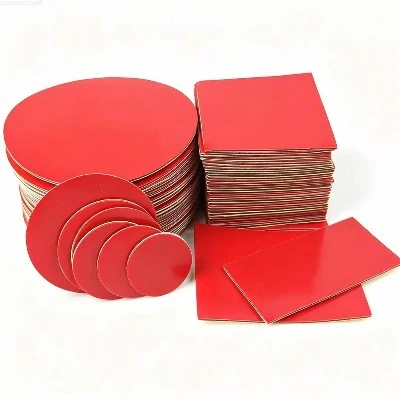

Custom Precision Die-Cut Shapes: Need pre-cut gaskets, curved strips, or intricate emblem outlines? Send us your CAD drawings (DXF/DWG/PDF) for precision stamped pieces supplied on rolls or sheets with extended pull-tabs for rapid application.
Direct Factory B2B Contract Pricing: Eliminate middleman trading markups. STK Tape supports automotive Tier-1 suppliers, aftermarket component manufacturers, and regional tape distributors with scalable direct-factory contract tiers.
Precision Log Slitting (Custom Widths): We slit master jumbo logs into exact custom roll widths (e.g., 6mm, 9mm, 12mm, 15mm, 19mm, 25mm, or any custom millimeter size) with razor-sharp, non-sticky edges.
